Channel Master 6501

CM6501 inside

Transistors (early Sony cylindricals): 2T73, 2T76 x 2, 2T65, 265 x 2, [1T23]
Speaker: 2-1/4"
Power source: 9V : BL006P (standard rectangular 9V)

The circuitry is more or less the same as that found in the Sanyo 6C-8. The only design differences are the lack of the connector for an external battery pack found on the 6C-8 and the use of a single earphone jack on the side. The combination earphone & external speaker jack on the back allows a second person to listen through earphones anyway.

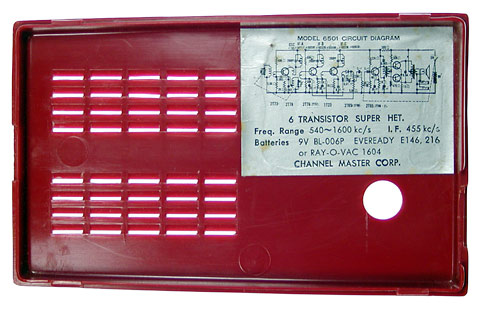

CM6501 product label
