Standard SR-F32

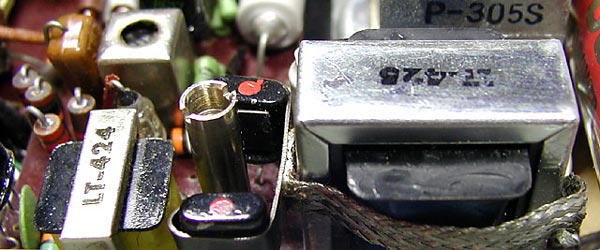

F32 heat sink

This photo gives you a better look at the heat sink comprised of the metal sheath and braided steel cable that protects the HJ-17 transistors placed between the two transformers. As an aside, you can also see the gourd-shaped glass 1N34A detector diode just behind the transformer on the left, (and one of the rectangular mica condensors to the left of the IFT behind the detector diode).
